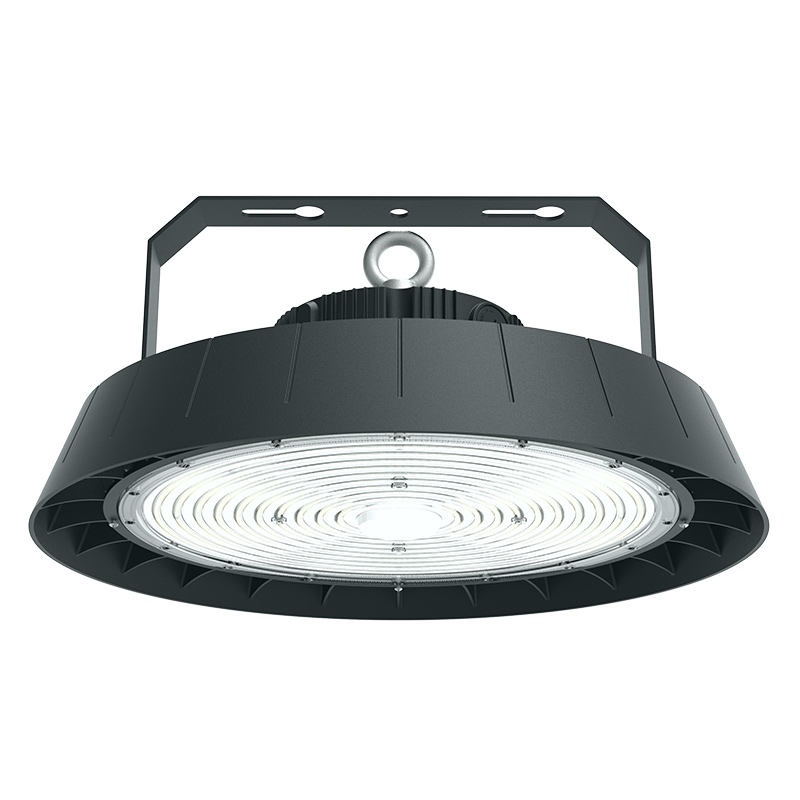

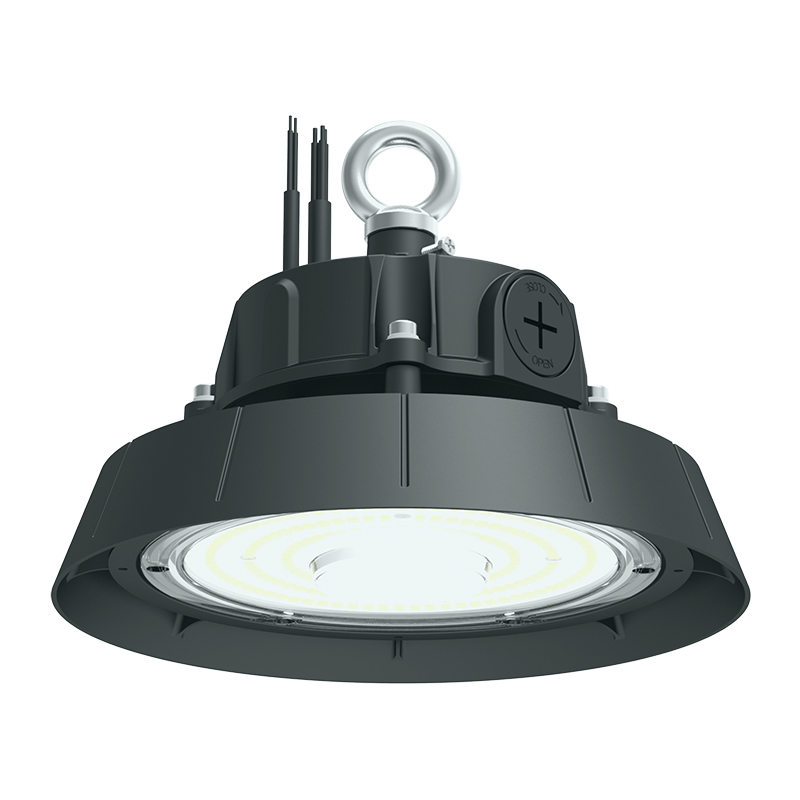

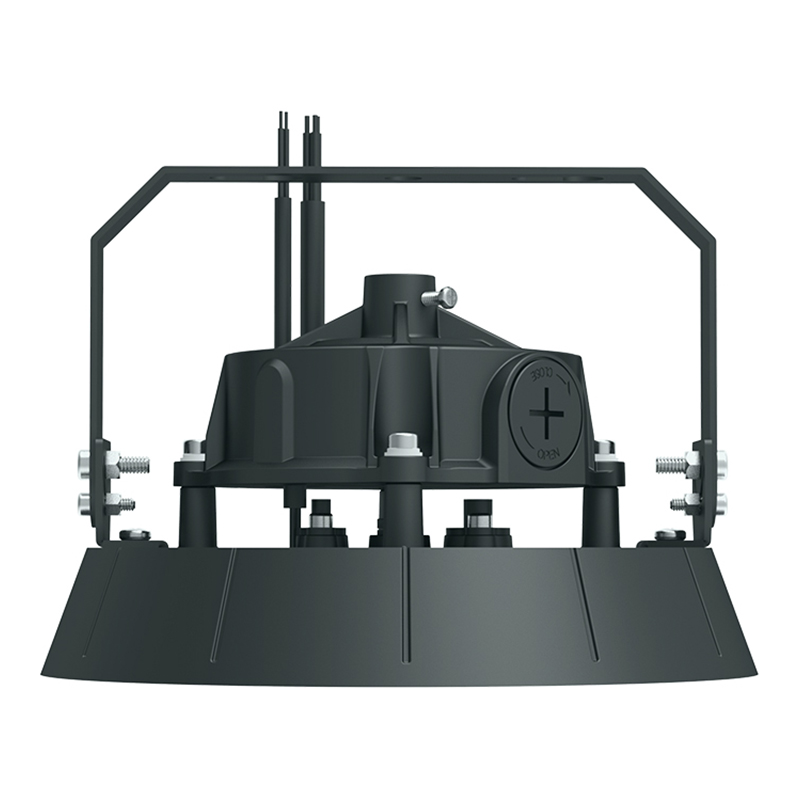

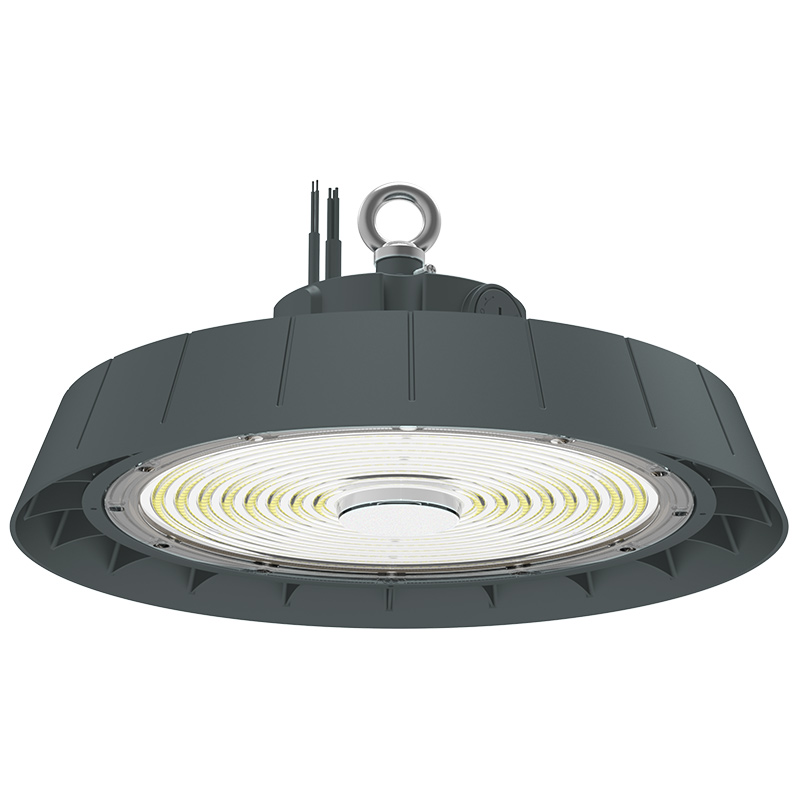

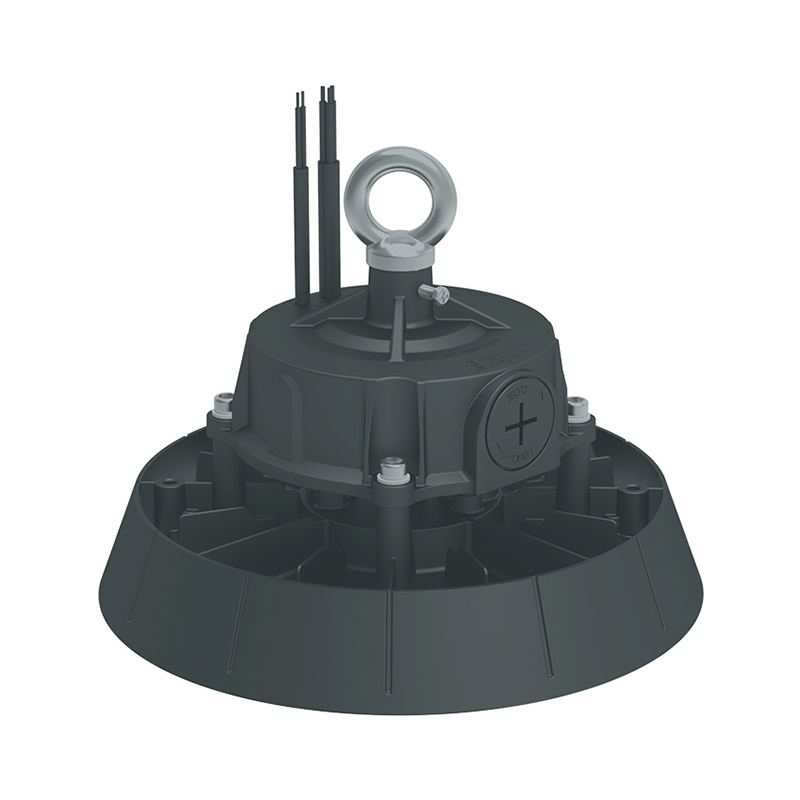

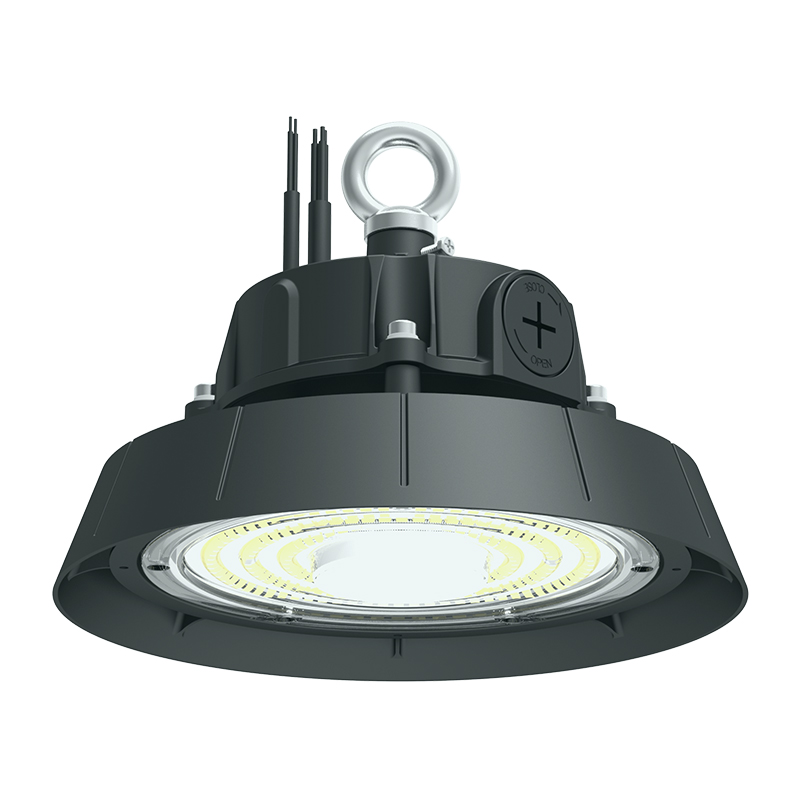

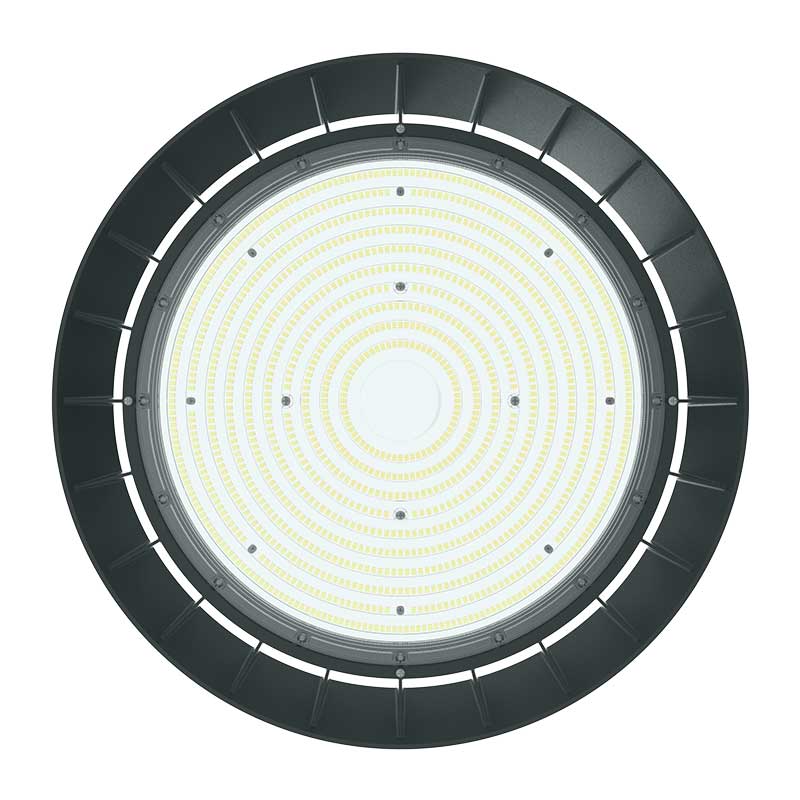

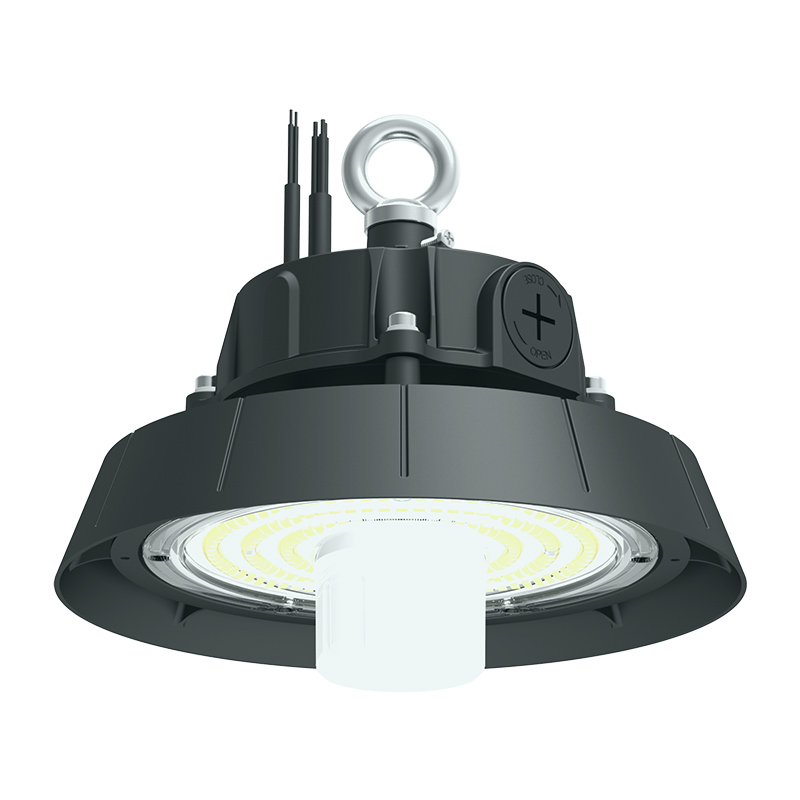

Simple Design LED High Bay Light
Category: Industrial And Mining Light
-
+86-18566625045 Phone
-
sales@djluxx.com Email

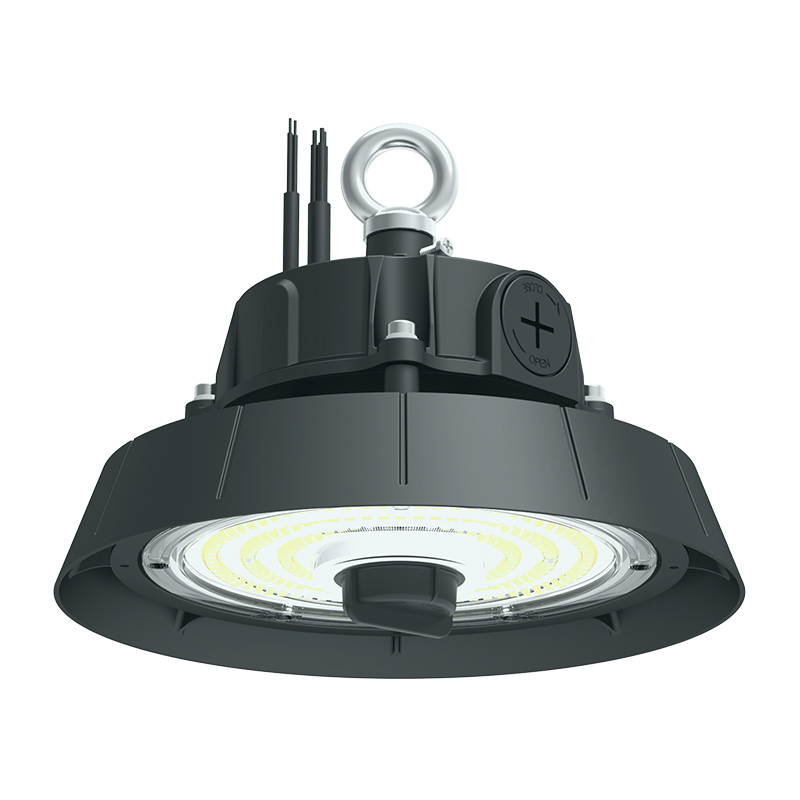

The LED High Bay Light is an industrial-grade luminaire designed specifically for high-ceiling space lighting. It utilizes a high-efficiency LED light source combined with a high-performance TIR lens, suitable for installation heights of 6 meters and above. This product offers a wide range of power options, from 30W to 300W, supporting 60°, 90°, and 120° beam angles to match specific space heights and illuminance standards. The lamp body employs a die-cast aluminum structure and a polycarbonate optical system, forming a stable heat dissipation and optical output structure. Combined with 1-10V, DALI 2.0, and D4i dimming interface options, it enables intelligent control of the lighting system. The LED High Bay Light ensures high brightness output while maintaining a long lifespan and high protection rating, making it a highly efficient solution for upgrading industrial and commercial lighting and replacing traditional metal halide and fluorescent lamps.
Simple Design LED High Bay Light features
1. High Efficiency and Energy Saving
The LED High Bay Light achieves a luminous efficacy of 150lm/W to 200lm/W, saving over 50% more energy than traditional metal halide lamps. The 300W model can output up to 60,000 lumens with a power factor ≥0.95, reducing reactive power loss and significantly lowering energy costs per unit area.
2. Stable Drive
Utilizing power supply solutions from brands such as MOSO, the input voltage range is 120-277Vac, supporting 50/60Hz frequency environments. Surge protection reaches L-N 4KV, and insulation class is Class I, ensuring continuous and stable operation under power grid fluctuations.
3. Long Lifespan and Durability
The lamp has a lifespan exceeding 50,000 hours, meeting the TM21 luminous flux maintenance standard. The lamp body uses ADC12 die-cast aluminum, with an operating temperature range covering -40℃ to +50℃, ensuring structural and performance stability in harsh temperature environments.
4. Robust Protection
The product boasts an IP65 protection rating and an IK08 impact resistance rating, effectively preventing dust intrusion and damage from external impacts. The outer surface is coated with polyester powder and offers optional anti-corrosion treatment conforming to ISO 9227 salt spray testing standards.
5. Precise Light Distribution
The LED High Bay Light supports three light distribution schemes: 60°, 90°, and 120°. Combined with a high-performance TIR polycarbonate lens, it achieves uniform light spot distribution. With a color rendering index of Ra80 and a flicker factor of less than 1%, it ensures visual stability and consistent light quality.
1. Industrial Plants
In heavy industrial plants, where ceiling heights typically exceed 8 meters, LED High Bay Lights can be fixed with 20mm interfaces via ceiling mounting. Combined with different beam angles, this achieves uniform illumination, meeting lighting standards for production areas.
2. Warehousing and Logistics
Warehouses require continuous aisle lighting. LED High Bay Lights, with their high lumen output and stable color temperature selection from 4000K to 5700K, ensure clear visibility of shelving areas, improving operational accuracy.
3. Commercial Retail Stores
Large supermarkets and retail spaces with high ceilings require high-brightness and highly consistent light sources. LED High Bay Lights offer adjustable illumination via dimming interfaces, maintaining overall brightness and visual comfort.
4. Sports Venues
In indoor stadiums or training centers, LED High Bay Lights provide high-brightness coverage, reduce glare interference, support various installation methods, and ensure uniform lighting in sports areas.
5. Public Lobby
In public spaces such as exhibition halls or transportation hubs, LED High Bay Lights can create a clear lighting environment through different color temperature configurations, and can cope with complex environmental conditions with a high-protection structure.
Simple Design LED High Bay Light faqs
Q: What dimming methods does the LED High Bay Light support?
A: The product supports 1-10V and 0-10V dimming interfaces, and offers optional DALI 2.0 and D4i system protocols. These control methods enable tiered brightness adjustment and intelligent system integration, making it suitable for intelligent lighting control platforms.
Q: How does the luminaire's heat dissipation structure ensure long-term stability?
A: The LED High Bay Light employs an integrated die-cast aluminum heat dissipation structure, combined with optimized fin design, to keep the LED chip's operating temperature within a reasonable range, thereby extending the light source's lifespan and reducing light decay.
Q: Can the power or color temperature be adjusted according to needs?
A: The product supports adjustable power and adjustable color temperature options, which can be configured according to project illuminance requirements and ambient light color requirements, enabling flexible lighting design solutions.
Q: Does the product operate stably in harsh environments?
A: The LED High Bay Light operates within a temperature range of -40℃ to +50℃ and has an IP65 protection rating and IK08 shock resistance, maintaining stable output even in dusty or high-temperature environments.
Q: Is product maintenance convenient?
A: This lamp features a tool-free opening design, allowing for quick replacement of electrical components. The ample space in the power supply compartment facilitates future inspection and upgrades, reducing maintenance time and labor costs.
