Corrosion Resistance LED Flood Lights
Category: Flood Light
-
+86-18566625045 Phone
-
sales@djluxx.com Email
These LED Flood Lights are medium-to-high power outdoor floodlighting products, primarily used for medium-to-long distance floodlighting applications such as building facades, parks and plazas, parking lots, and landscape features. This series features a die-cast aluminum housing and high-efficiency LED light sources, ensuring high brightness output while also prioritizing heat dissipation, safety, and long-term stability. The product supports multiple power configurations from 15W to 180W, with a maximum luminous efficacy of up to 150 lm/W. This effectively reduces energy consumption while meeting illumination requirements, making it suitable for engineering projects, commercial lighting, and OEM/ODM bulk purchasing needs.
Corrosion Resistance LED Flood Lights features
1. Luminous Efficacy

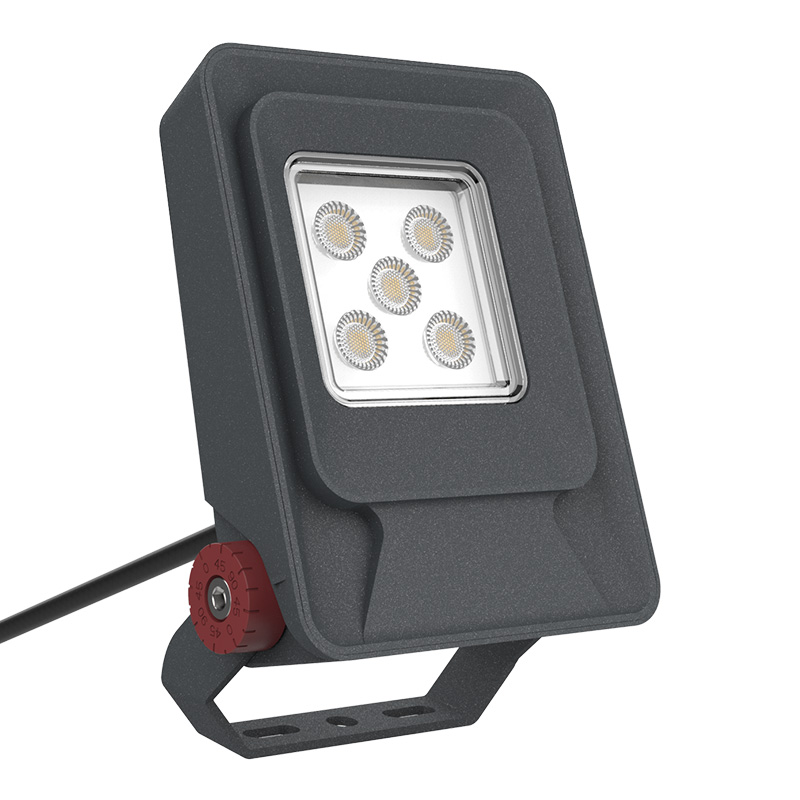

This series of LED Flood Lights uses LED5050 light sources (3535/3030 optional), achieving a system luminous efficacy of up to 150 lm/W, delivering higher effective lumen output under the same power conditions. For example, the 30W model provides a total luminous flux that meets the replacement requirements of traditional 70–100W metal halide lamps, significantly reducing energy consumption in building facade or plaza floodlighting applications. The luminaire has a 90° floodlight beam angle, providing uniform illumination coverage and effectively reducing bright spots and dark areas, making it suitable for engineering scenarios requiring high lighting consistency.
2. Size and Structure

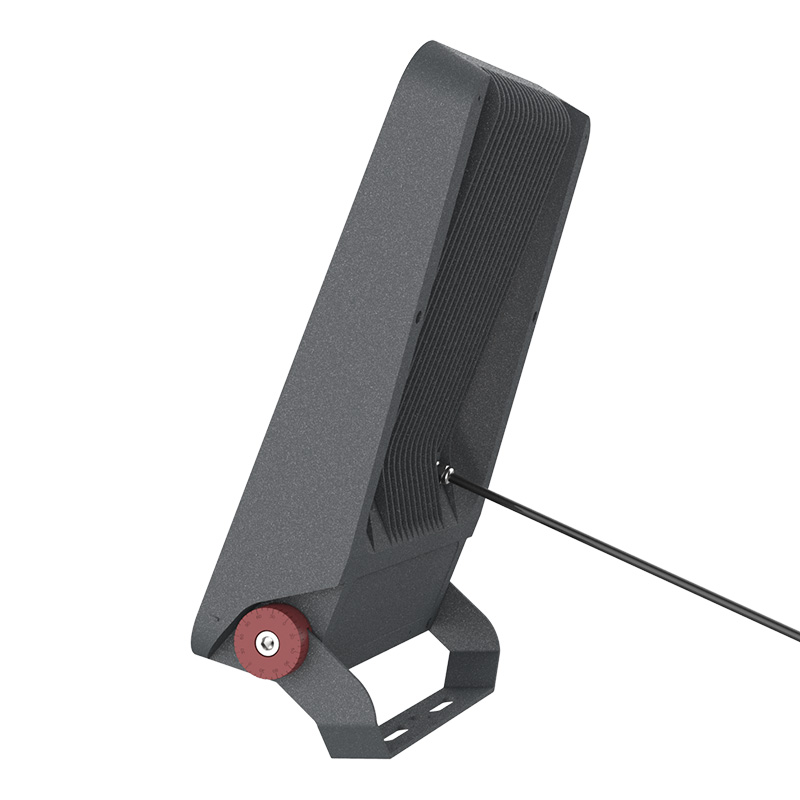

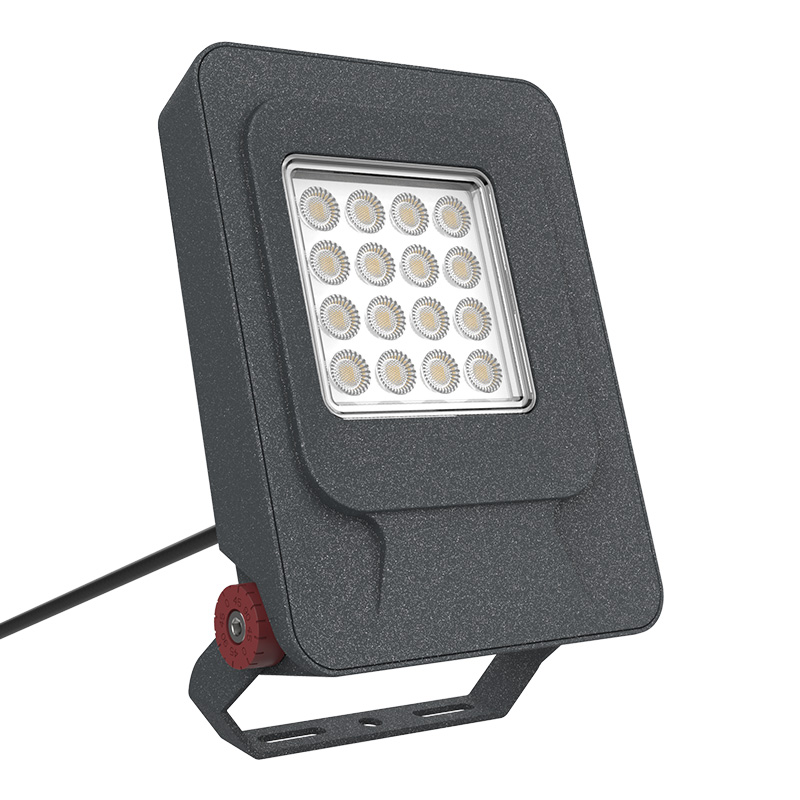

Taking the DFL01-30W as an example, the overall dimensions are 250.2 × 153.6 × 42 mm, and the weight is approximately 0.85 kg, featuring a low-profile, compact structural design. The thin body reduces the space required for installation while maintaining sufficient heat dissipation area, making it particularly suitable for installation in space-constrained locations such as curtain walls, columns, and fences. The standardized dimensions also facilitate project planning and uniform lighting design, reducing construction and maintenance complexity.
3. Thermal Design

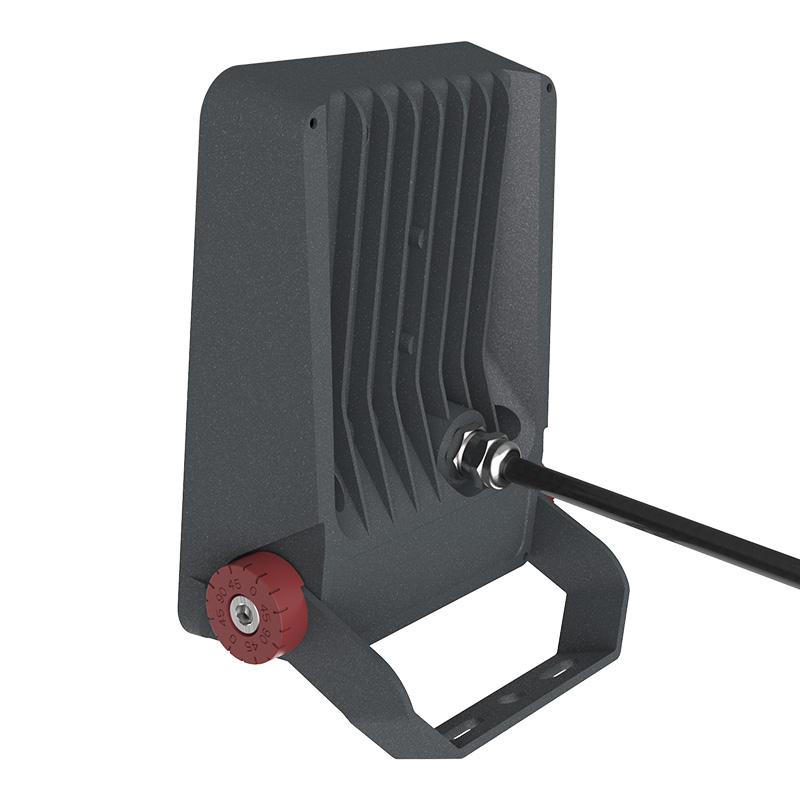

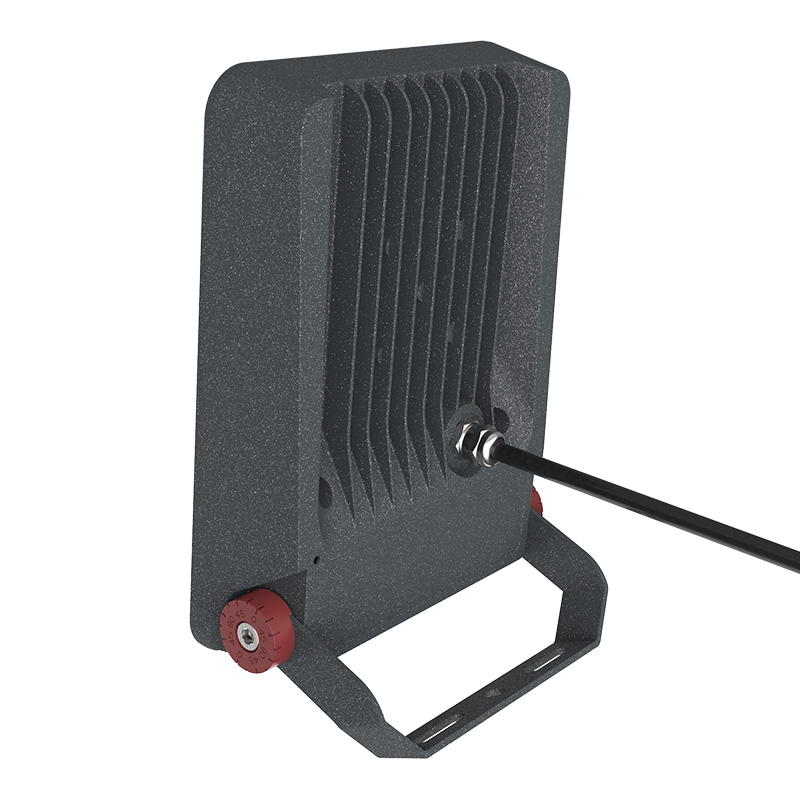

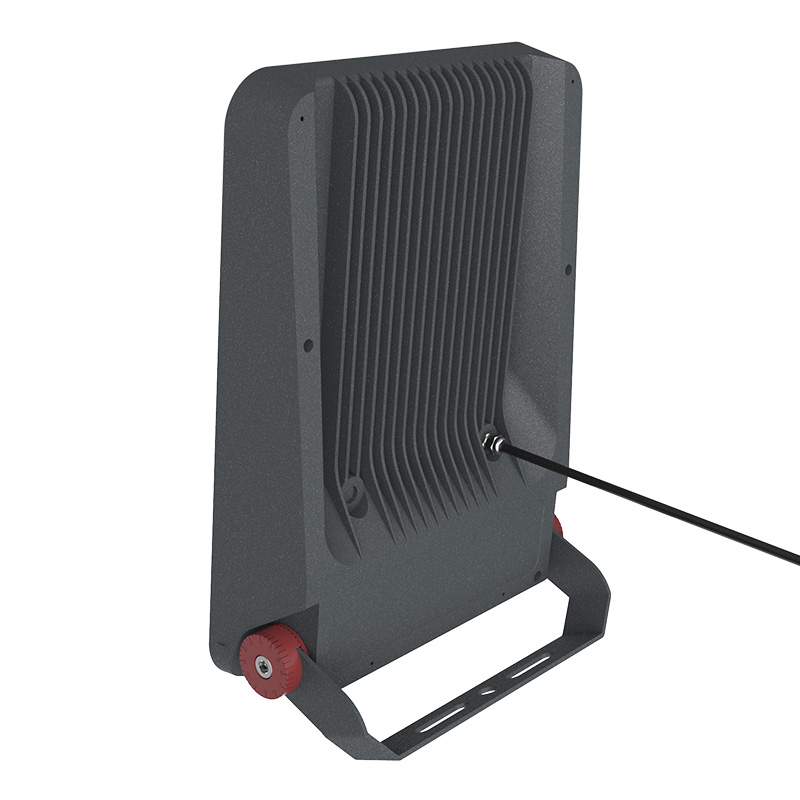

The lamp body uses an ADC12 die-cast aluminum housing with an integrated back heat dissipation structure, allowing the LED chips to maintain a reasonable junction temperature even under high-load operating conditions. The luminaire can operate stably in ambient temperatures ranging from -40℃ to +50℃. Good heat dissipation performance is directly related to LED lumen depreciation control. This series has been verified through TM21/LM80 data models, and the lamp life can reach over 50,000 hours, meeting the requirements for long-term outdoor use.
4. Protection Rating
The luminaire has an IP66 protection rating, effectively preventing rainwater, dust, and splashing water from entering the lamp body, making it suitable for long-term outdoor use without additional protection. At the same time, the impact resistance rating reaches IK08, allowing the luminaire to withstand a certain degree of external impact in public areas or industrial environments, reducing the risk of damage caused by collisions. This combination of protection is particularly important in outdoor engineering lighting, reducing the frequency of maintenance and replacement.
5. Electrical Safety
The product has an input voltage range of 100–277Vac, 50/60Hz, making it compatible with power grids in multiple countries and suitable for export and cross-regional projects. The overall power factor (PF) of the lamp is ≥0.9, effectively reducing reactive power loss and meeting the power quality requirements of most engineering projects. It also features built-in 4KV surge protection (EN 61547), which effectively protects the driver and light source in thunderstorms or power grid fluctuations, improving system reliability.
1. Building Facades
In the facade lighting of commercial complexes, office buildings, and public buildings, LED Flood Lights can uniformly illuminate wall contours with a 90° floodlight distribution, highlighting the architectural structure and layers. The high luminous efficacy of 150 lm/W reduces the number of fixtures required per unit area, helping to control the overall project power density. The IP66 protection rating ensures stable operation in long-term wind and rain environments, making it suitable for fixed installation on exterior walls or eaves.
2. Parks and Plazas
In industrial parks, schools, or community plazas, this series of floodlights can be used for large-area functional lighting or landscape accent lighting. The power range of 30W–180W can flexibly match the needs of different plaza sizes, and the IK08 impact resistance rating effectively reduces the risk of damage caused by human or equipment collisions in public places, making it suitable for long-term use in high-traffic areas.
3. Parking Areas
LED Flood Lights are commonly used for lighting ground-level parking lots and underground entrances/exits. Their stable Ra70 color rendering index meets the basic requirements for vehicle identification and safe pedestrian movement, while the low flicker rate (<1%) helps="" reduce="" visual="" fatigue="" in="" environments="" with="" prolonged="" lighting.="" compared="" to="" traditional="" sodium="" or="" metal="" halide="" lamp="" solutions="">
4. Landscape Features
In applications around sculptures, landscape features, and water features, floodlights need to balance lighting effects with environmental adaptability. This series supports multiple color temperature configurations (1800K / 2700K / 4000K / 5000K), allowing for the creation of different atmospheres according to design requirements. The stable protection and corrosion-resistant coating allow for long-term use around fountains or high-humidity environments.
5. Engineering Projects
For engineering projects requiring standardized specifications and long-term supply, this series of products supports multiple power levels and interface options, suitable for OEM/ODM customized configurations. The standardized structure and mature parameter system contribute to higher overall efficiency and consistency in the bidding, installation, and subsequent maintenance phases of the project.
Corrosion Resistance LED Flood Lights faqs
Q: How does the LED floodlight perform in terms of lifespan under continuous outdoor use?
A: This series is designed and verified based on LM80 and TM21 lumen depreciation models. Under reasonable heat dissipation conditions, the lifespan of the entire lamp can reach over 50,000 hours. The die-cast aluminum housing and efficient heat dissipation structure ensure that the LED chips operate within a safe temperature range for a long time. Even in high-temperature or cold environments, the lumen depreciation rate remains within a controllable range, making it suitable for long-term continuous outdoor use.
Q: How to choose different power models for engineering projects?
A: Power selection is usually related to the installation height, illumination distance, and target illuminance requirements. For example, 30W–50W is more suitable for low-height facades or small-area supplementary lighting, while 120W–180W is suitable for squares or large-area lighting. The system luminous efficacy of 150 lm/W allows users to reduce power configuration while meeting illuminance requirements, thus optimizing the overall energy consumption plan.
Q: What is the significance of IP66 and IK08 in practical use?
A: IP66 ensures that the luminaire can still operate normally in harsh weather conditions such as heavy rain and dust, avoiding failures caused by water ingress or dust accumulation; IK08 impact resistance is particularly important in public areas, reducing the probability of damage to the lamp body caused by external impact. These two indicators directly relate to the lifespan and maintenance costs of the luminaire.
Q: Is the product suitable for export or multinational projects?
A: Yes, this series supports 100–277Vac wide voltage input, compatible with power grid standards in multiple countries. The power factor PF≥0.9 meets the energy efficiency and electrical performance requirements for lighting equipment in most countries, making it very suitable for export projects or overseas engineering procurement.
Q: Do you support project customization or bulk purchasing?
A: The product supports flexible configuration of power range, color temperature, and interface solutions, suitable for OEM/ODM project cooperation. For bulk purchases, parameter unification and packaging customization can be carried out according to project requirements, improving overall delivery efficiency and project consistency.
